FIBER OPTIC SIMPLEX / DUPLEX PATCH CORD

Fiber optic patch cords are suited for communication equipment, cross connects and work area connections. All patch cords are 100% factory tested to ensure performance.
LC, SC, FC, ST Patch Cords are available in both multi mode (62.5/125ųm and 50/125ųm) and single mode cable-types, in duplex and simplex versions.

Profiber’s patch cords provide high reliability and flexibility in different application. All patch cords can be customized in cable length, color and connector types to suit every customer requirement with our advanced technology and production facilities.

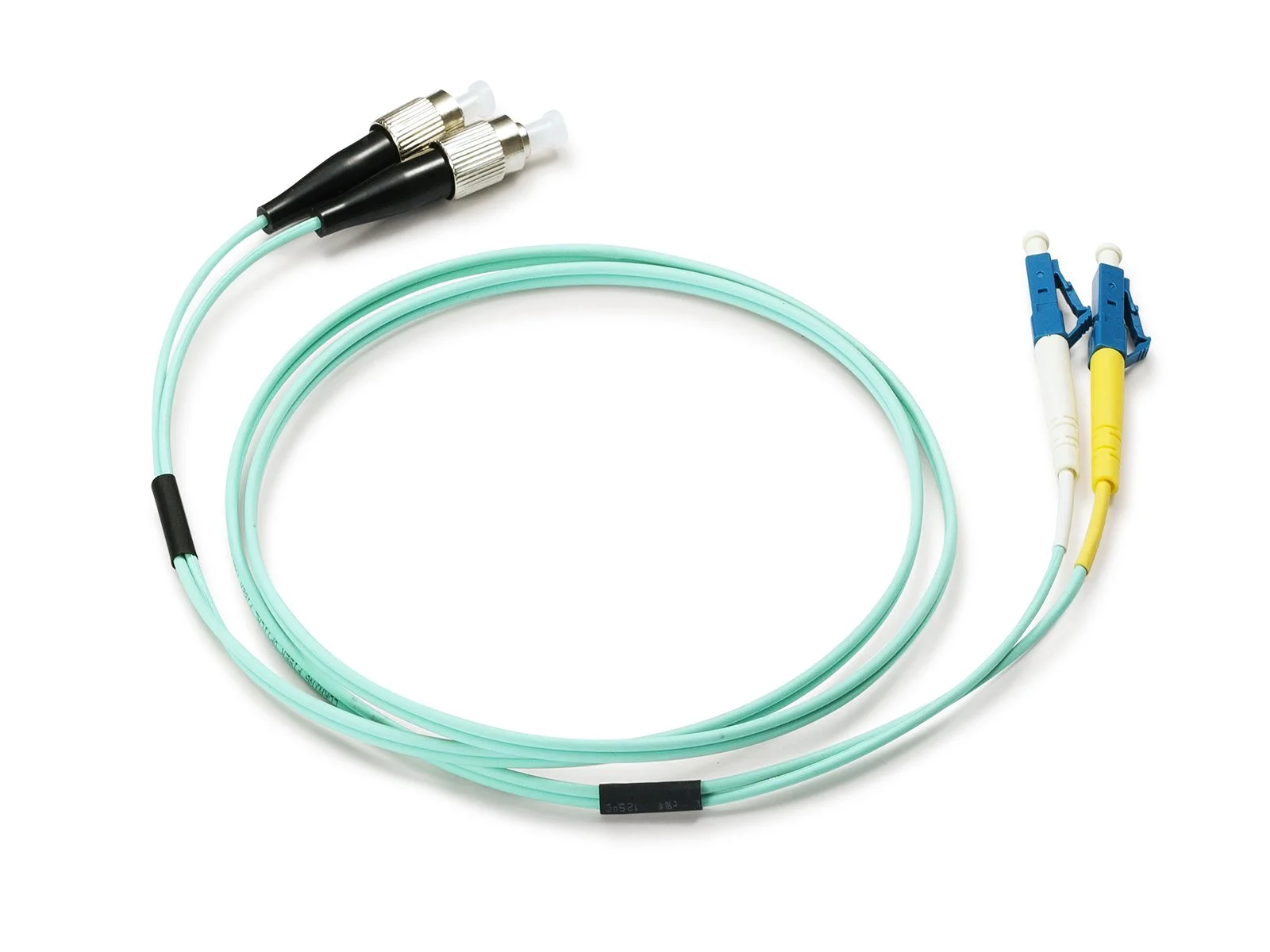

XDK-093 副本.jpg
XDK-010 副本.jpg
XDK-067 副本.jpg
XDK-041 副本.jpg
XDK-024 副本.jpg
XDK-061 副本.jpg

  • • High-quality ferrules

    • Bend-insensitive fibers

    • 100% tested assemblies

    • Low insertion loss, high return loss Stable optical properties

    • Good exchangeability and durability


  • CONNECTOR TYPE:     LC/SC/FC/ST

    POLARITY TYPE: A TO B, A TO A

    CABLE DIAMETER: 0.9MM, 2.0MM, 3.0MM

    CABLE JECKET COLOR: YELLOW, ORANGE, AQUA, VIOLET AND OEM COLORS


  • FIBER MODE:     OS1/OS2/G657-9/125 BEND INSENSITIVE(A.1 OR A.2) OR OM1/2/3/4/5

    TEST WAVELENGTH : 1310NM/1550NM (SINGLEMODE), 850NM/1300NM (MULTIMODE)

    INSERTION LOSS (LOW LOSS): SINGLEMODE ≤0.10DB, MULTIMODE ≤ 0.10DB

    INSERTION LOSS (STANDARD LOSS): SINGLEMODE≤0.30DB, MULTIMODE≤0.30DB

    RETURN LOSS: SINGLEMODE UPC≥55DB APC≥65DB, MULTIMODE UPC≥25DB
