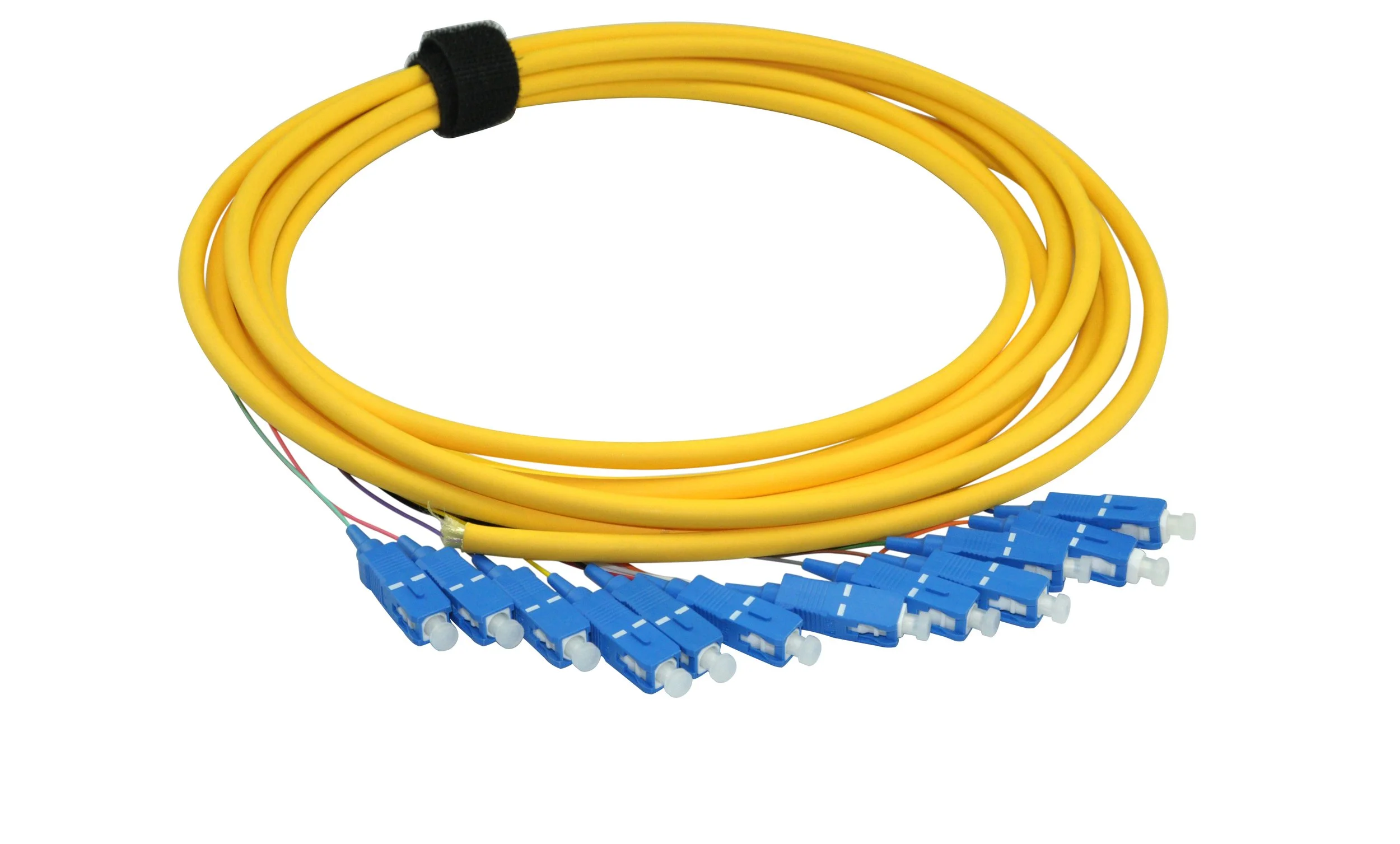

FIBER OPTIC BUNDLE PIGTAIL

Fiber optic bundle pigtail assemblies are available in various fiber counts, with distribution cable or outside plant cable. Outside plant cable assemblies utilize end-blocking kits for water protection and bundle tubing for fiber ruggedizing, distribution is 900um tight buffered and typically not ruggedized, depending on the application. While fiber optic bundle pigtails assemblies are most often pigtail, patch cord (jumpers) are also available and provide numerous installation advantages.

Profiber’s bundle pigtail provide high reliability and flexibility in different application. All bundle pigtail can be customized in cable length, color and connector types to met each customer requirement with our advanced technology and production facilities.


  • • High-quality ferrules

    • 100% Factory tested assemblies

    • Low insertion loss, high return loss

    • Good repeatability and interchange


  • CONNECTOR TYPE:     LC/SC/FC/ST

    CABLE JECKET COLOR: YELLOW, ORANGE, AQUA, VIOLET AND OEM COLORS

    BRANCH CABLE DIAMETER: 0.9 MM

    BRANCH CABLE COLOR: 12 COLOR : BLUE, ORANGE, GREEN, BROWN, GRAY, WHITE, RED, BLACK, YELLOW, VIOLET, ROSE, AQUA


  • FIBER MODE:     OS1/OS2/G657-9/125 BEND INSENSITIVE(A.1 OR A.2) OR OM1/2/3/4/5

    TEST WAVELENGTH : 1310NM/1550NM (SINGLEMODE), 850NM/1300NM (MULTIMODE)

    INSERTION LOSS (LOW LOSS): SINGLEMODE ≤0.10DB, MULTIMODE ≤ 0.10DB

    INSERTION LOSS (STANDARD LOSS): SINGLEMODE≤0.30DB, MULTIMODE≤0.30DB

    RETURN LOSS: SINGLEMODE UPC≥55DB APC≥65DB, MULTIMODE UPC≥25DB
