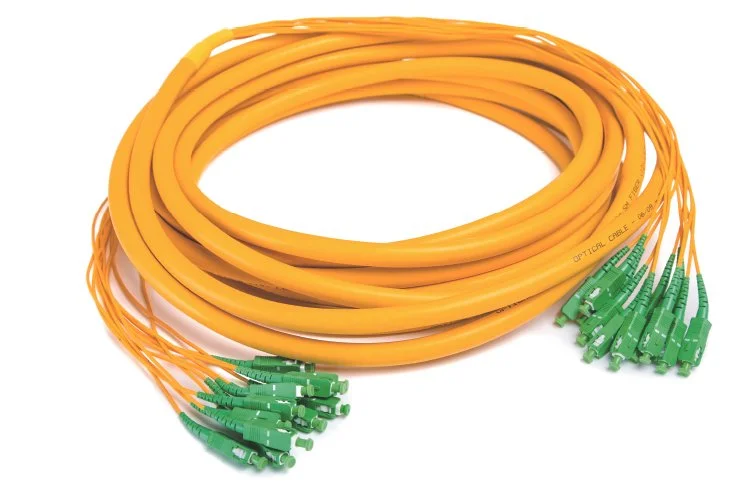

FIBER OPTIC BUNDLE PATCH CORD

Bundle patch cord  is multi-core round cable with conventional optical fiber connector at both ends. Black branch or heat protection tube is used as branch node which can save cost and ensure excellent mechanical and optical performance.

Profiber’s bundle patch cord provide high reliability and flexibility in different application. All bundle patch cord can be customized in cable length, color and connector types to suit each customer requirement with our advanced technology and production facilities.

  • • High-quality ferrules

    • 4-144 core available

    • 100% Factory tested assemblies

    • Low insertion loss, high return loss

    • Small volume, high fiber density

    • Good exchangeability and durability

    • Stable optical properties


  • CONNECTOR TYPE:     LC/SC/FC/ST

    POLARITY TYPE: A TO B, A TO A

    CABLE DIAMETER: 0.9MM, 2.0MM, 3.0MM

    CABLE JECKET COLOR: YELLOW, ORANGE, AQUA, VIOLET AND OEM COLORS


  • FIBER MODE:     OS1/OS2/G657-9/125 BEND INSENSITIVE(A.1 OR A.2) OR OM1/2/3/4/5

    TEST WAVELENGTH : 1310NM/1550NM (SINGLEMODE), 850NM/1300NM (MULTIMODE)

    INSERTION LOSS (LOW LOSS): SINGLEMODE ≤0.10DB, MULTIMODE ≤ 0.10DB

    INSERTION LOSS (STANDARD LOSS): SINGLEMODE≤0.30DB, MULTIMODE≤0.30DB

    RETURN LOSS: SINGLEMODE UPC≥55DB APC≥65DB, MULTIMODE UPC≥25DB
