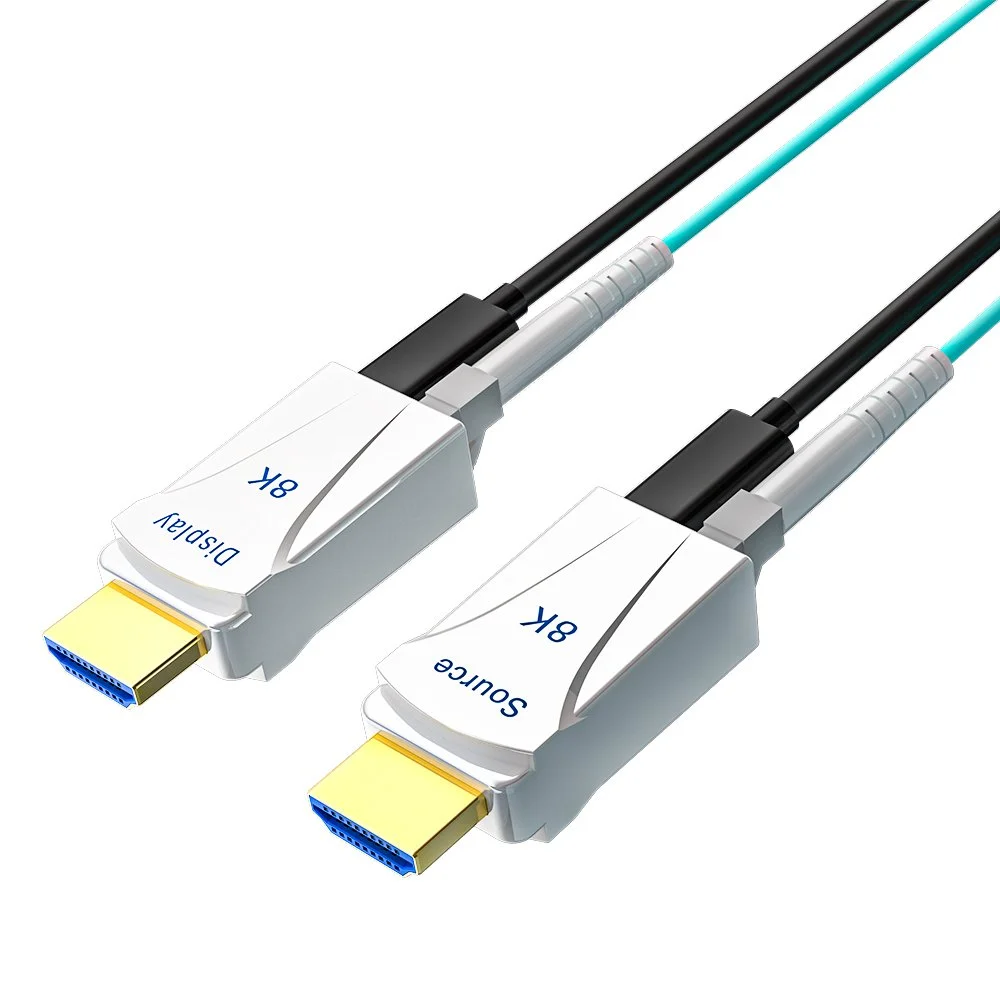

H13 - HDMI 8K / 60HZ SIMPLEX LC FULLFIBER AOC

XDK HDMI 8K Simplex LC AOC is a superior performance solution for easily extending 8K high resolution HDMI digital signals to incredible distance, It uses CWDM technology to achieve high-definition audio and video transmission over distances of up to 150m through a multimode fiber optic cable. The Optical Port of both Source and Display modules adopts standard LC connector design, itʼs convenient for users to plug on the MMF Jumper and open the service in the installation field. XDKʼs Simplex FullFiber AOCs are widely used in HDTV, Cinema screen, or indoor, outdoor billboard display system. The Unique WDM technology gives end users excellent flexible, thin, light and long reach cable application experience.

  • • Using VCSEL, PIN, and lens platforms.

    • Support HDMI 8K @60Hz and full bandwidth of 48Gbps.

    • Support HDCP/DDC/CEC.

    • Variety of AOC cable lengths are available, up to 150m(492ft).

    • Lightweight and flexible AOC full fiber cable with 5mm bend radius.

    • Plug and Play, External power delivery is needed. Excellent EMI/RFI protection.

  • MODEL NUMBER: HSF-48G-N-XXX*

    DATE RATE: 48Gb/s (12Gb/s/Ch)

    OTHER FEATURES:
    HDCP/DDC/CEC

    SUPPORT LENGTH:
    1m-150m
    *XXX-Meters
